The 1UZ & 3UZ VVT engine swap kit is designed to seamlessly integrate into the Scion FRS, Toyota GT86, and Subaru BRZ. This 100% plug-and-play kit ensures that all OEM functions, such as push-button start, air conditioning, cruise control, ABS, power steering, seamless CAN integration, and traction control.
Compatibility and Components
The kit is compatible with the Link ECU G4x Xtreme and included are the necessary additional sensors to allow the ECU to operate the engine effectively. Customers must select the wideband package that best suits their needs.
Included Components

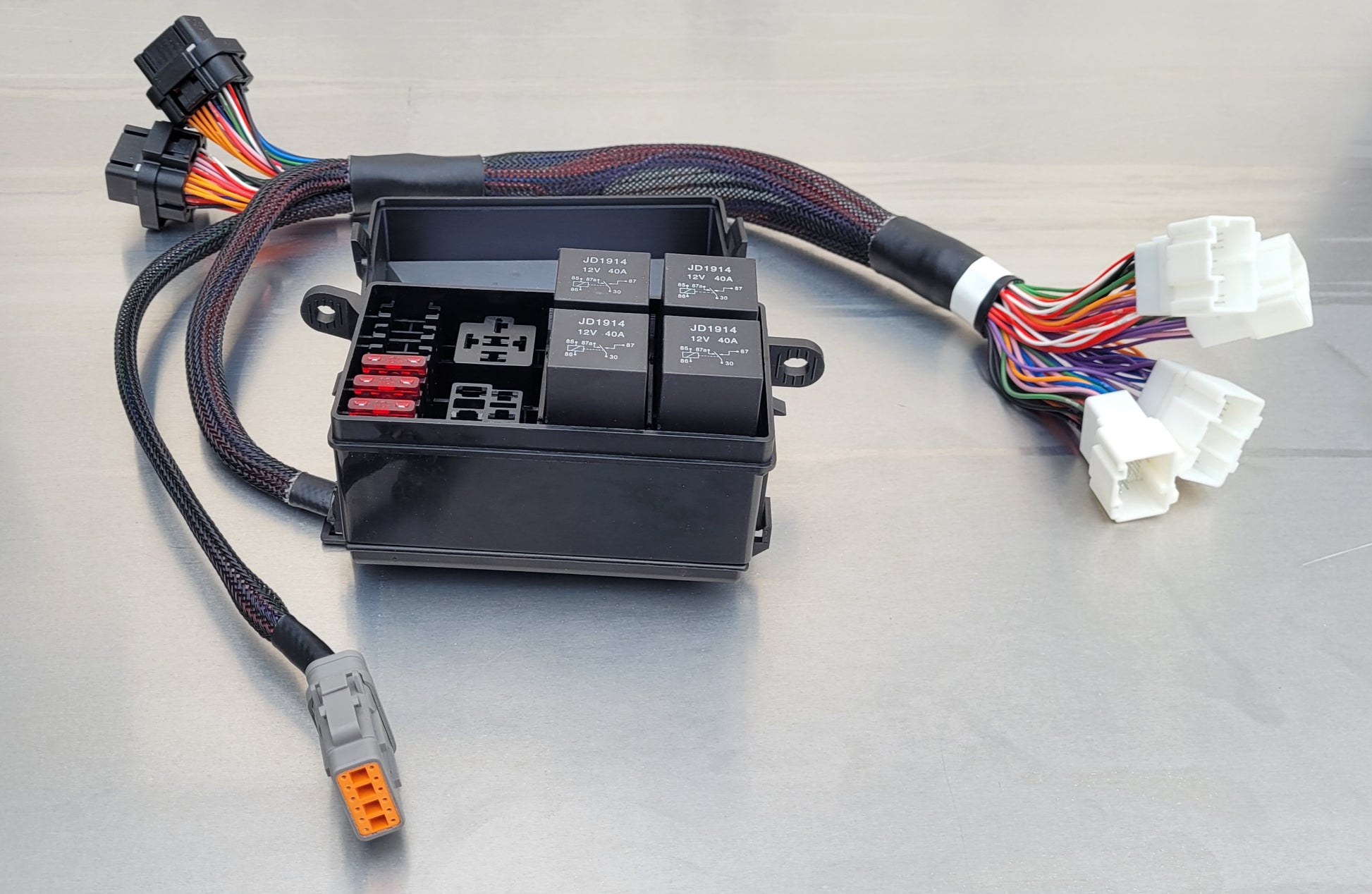

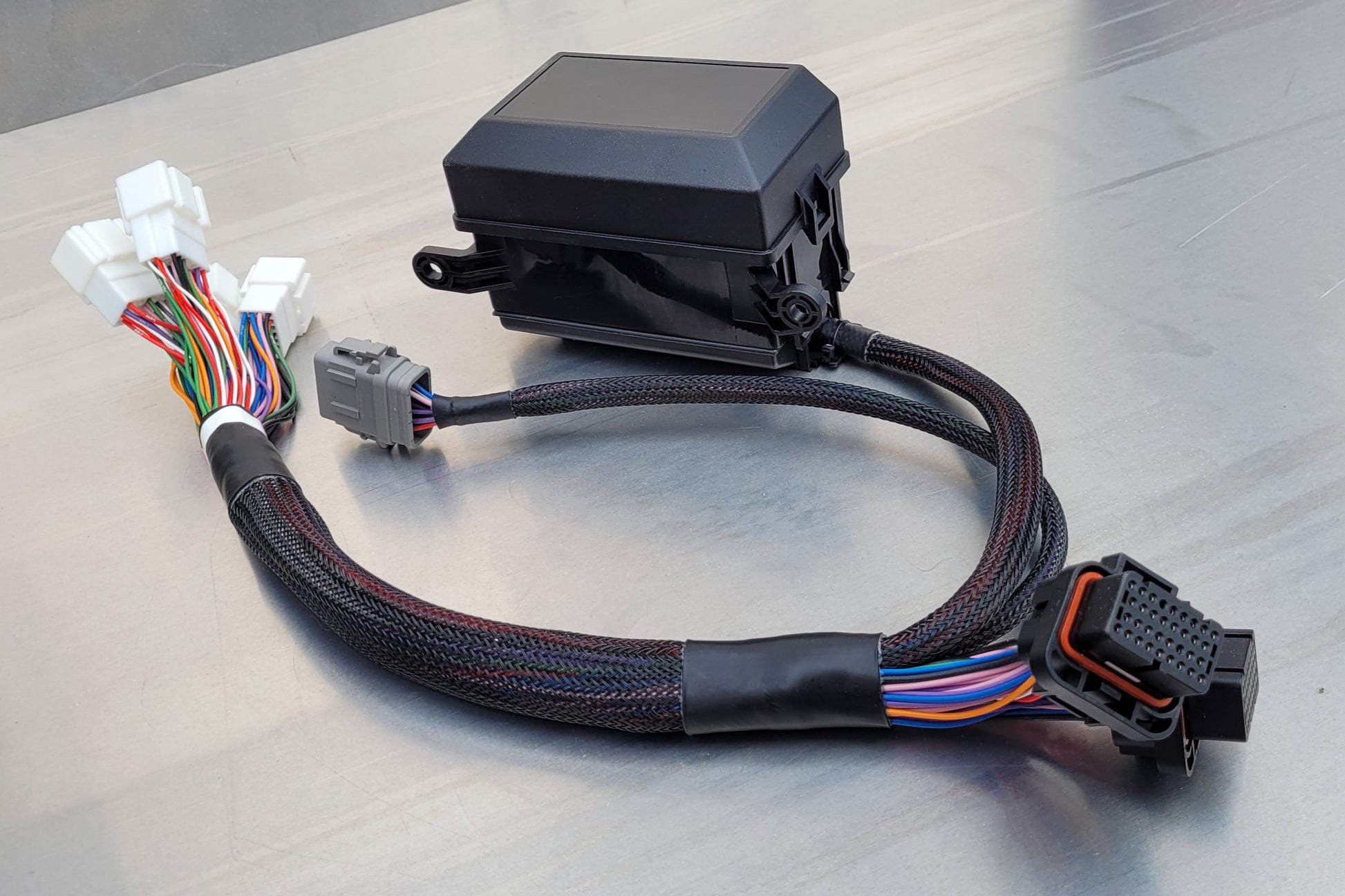

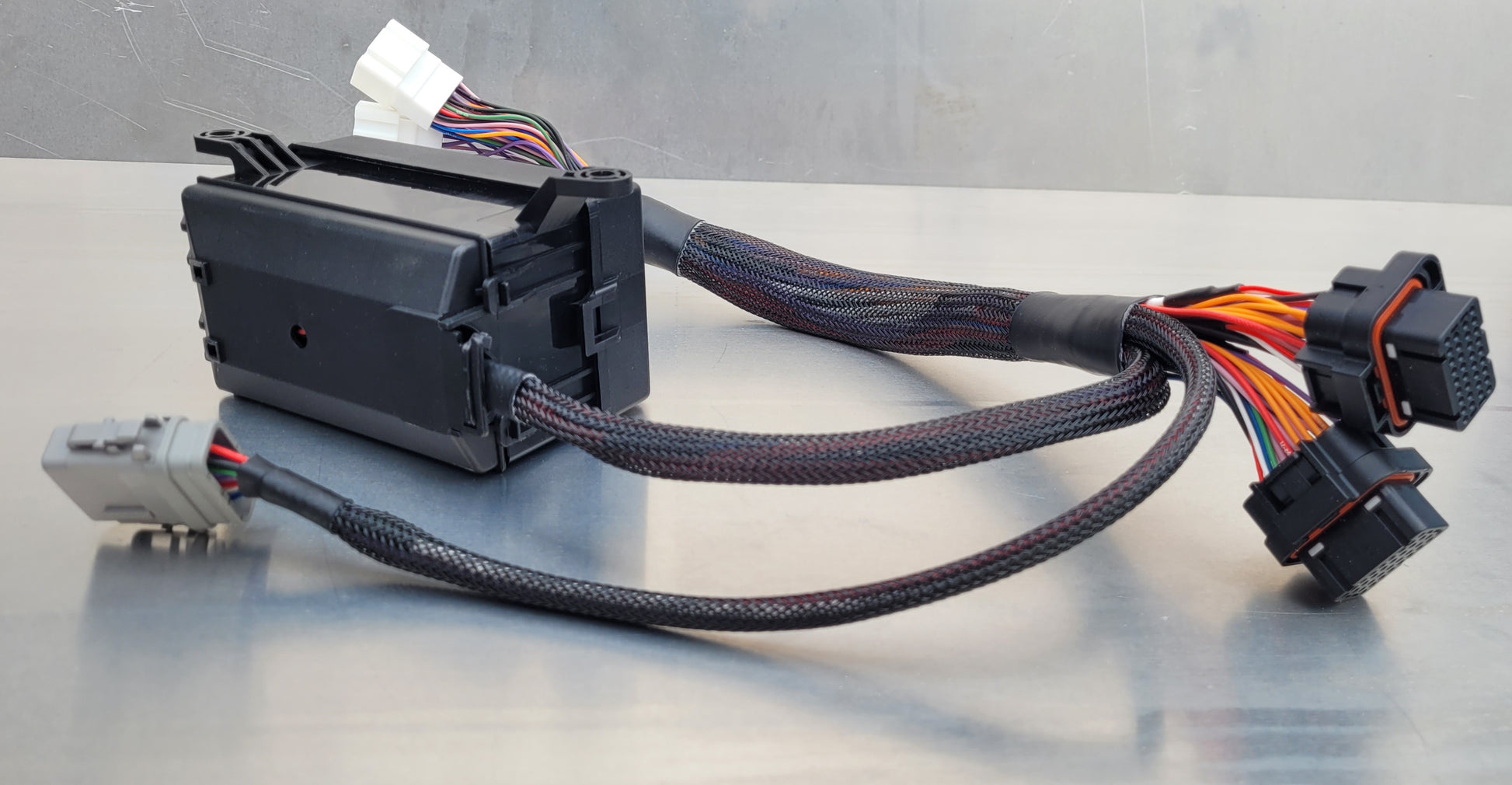

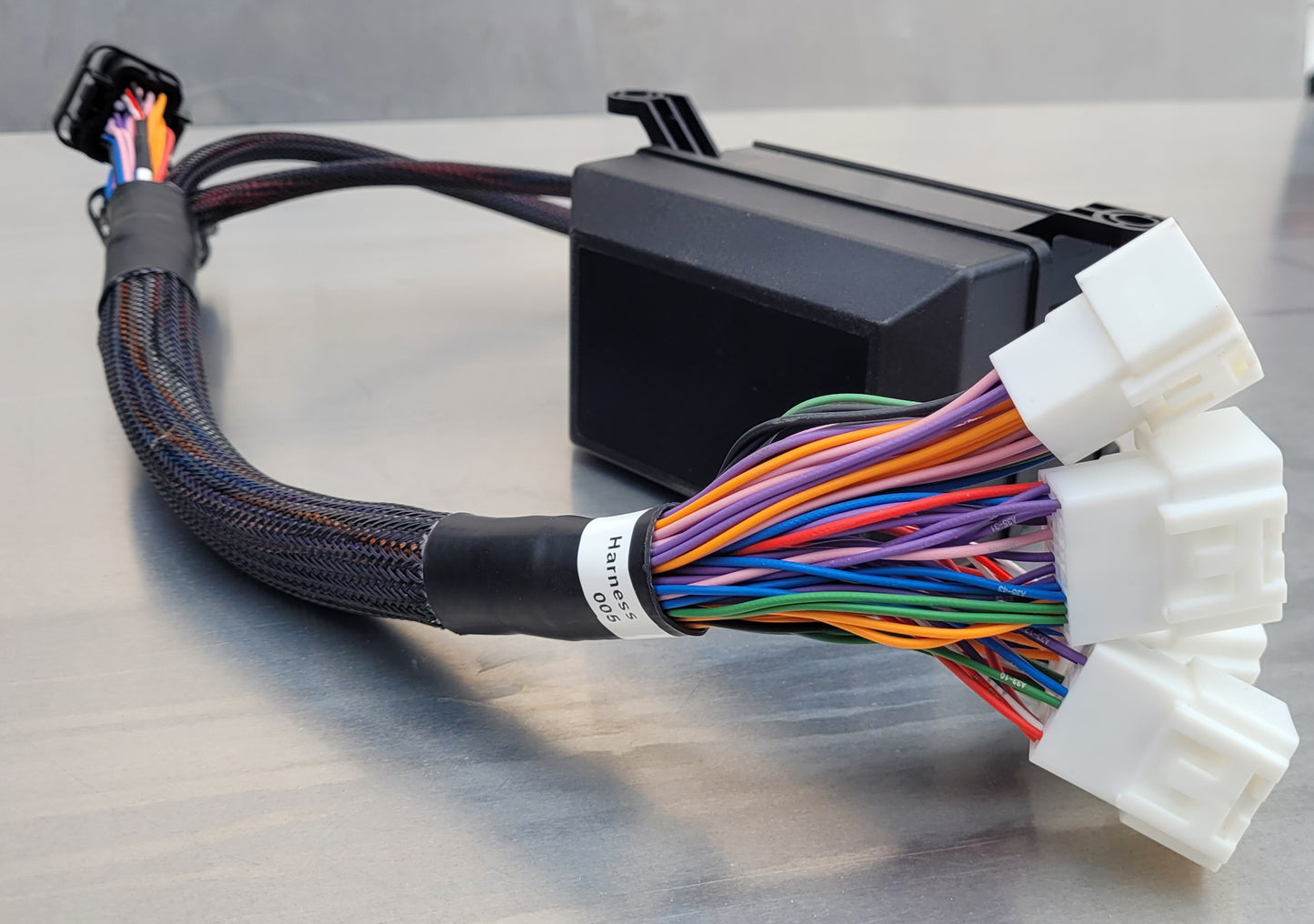

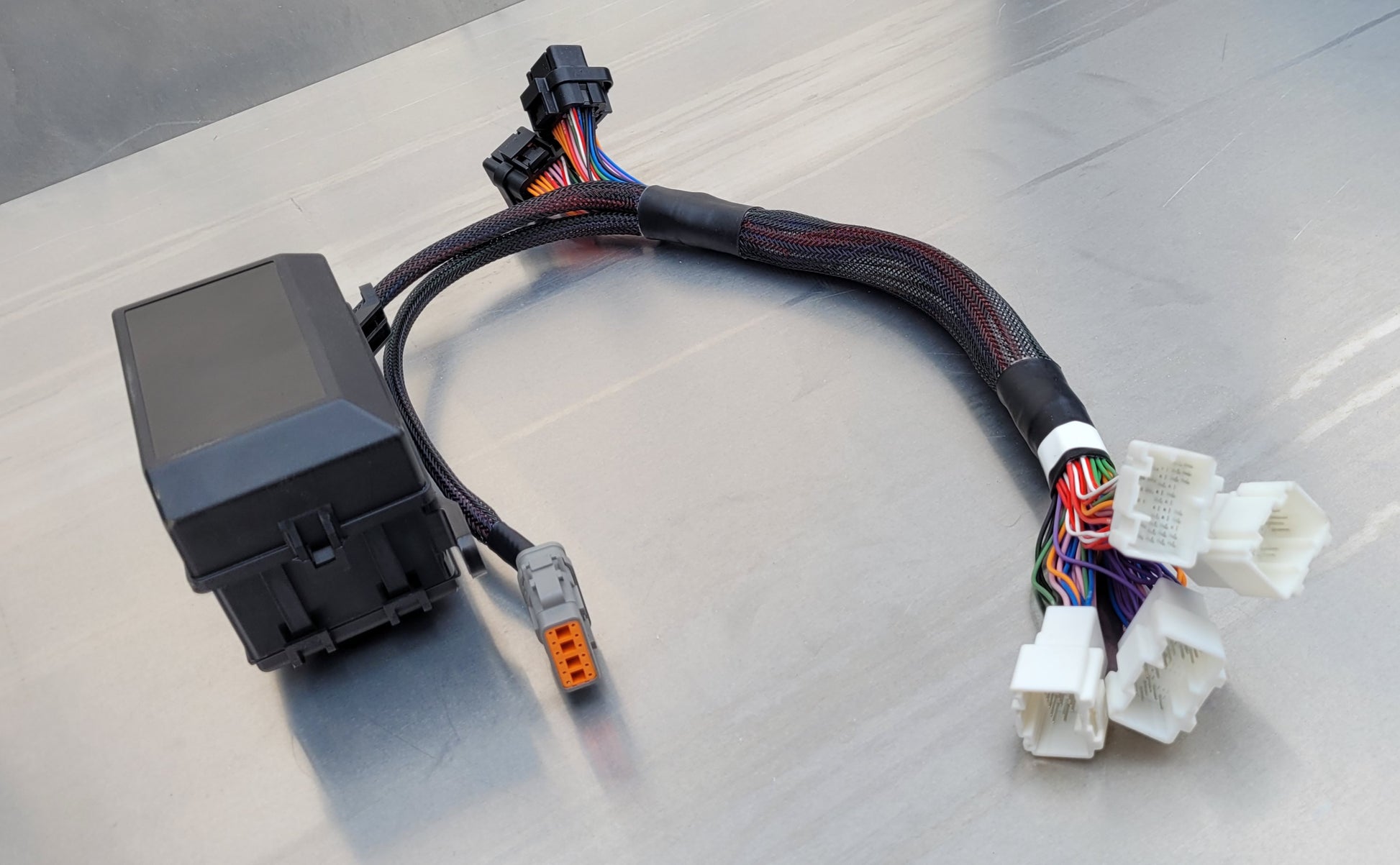

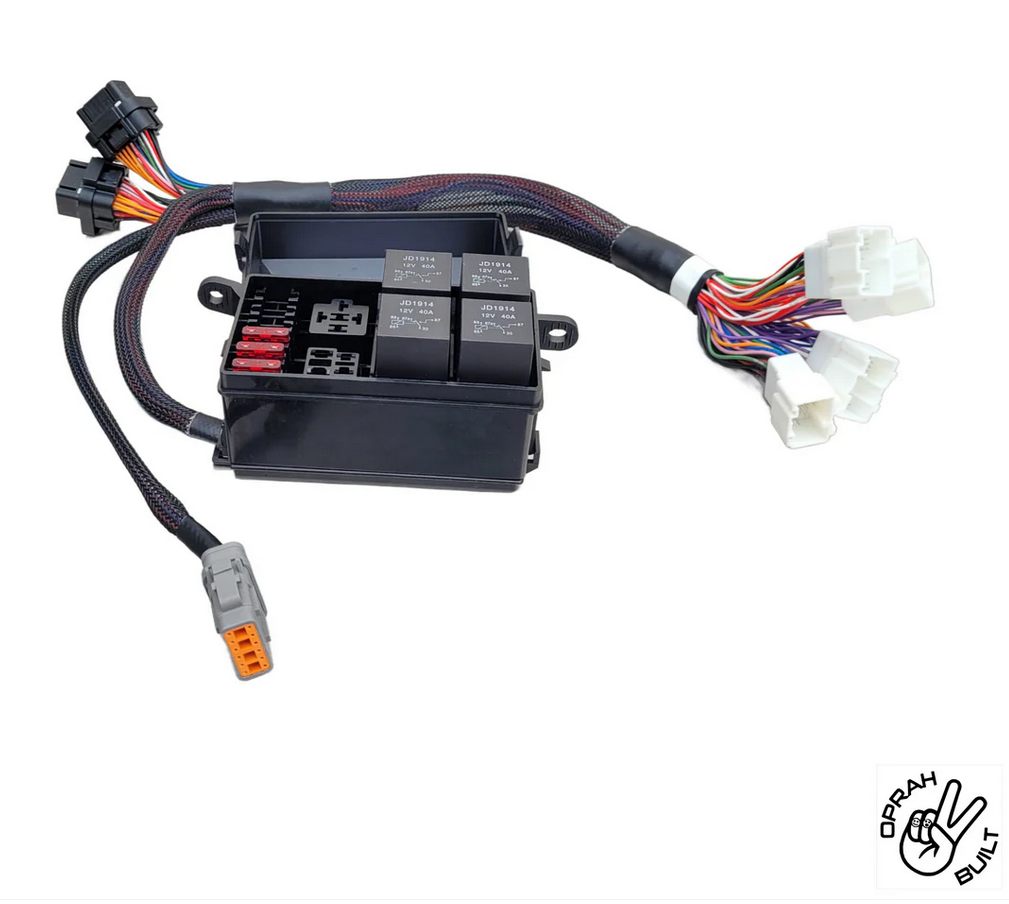

· 1x ECU patch harness suited for Link ECU G4x Xtreme

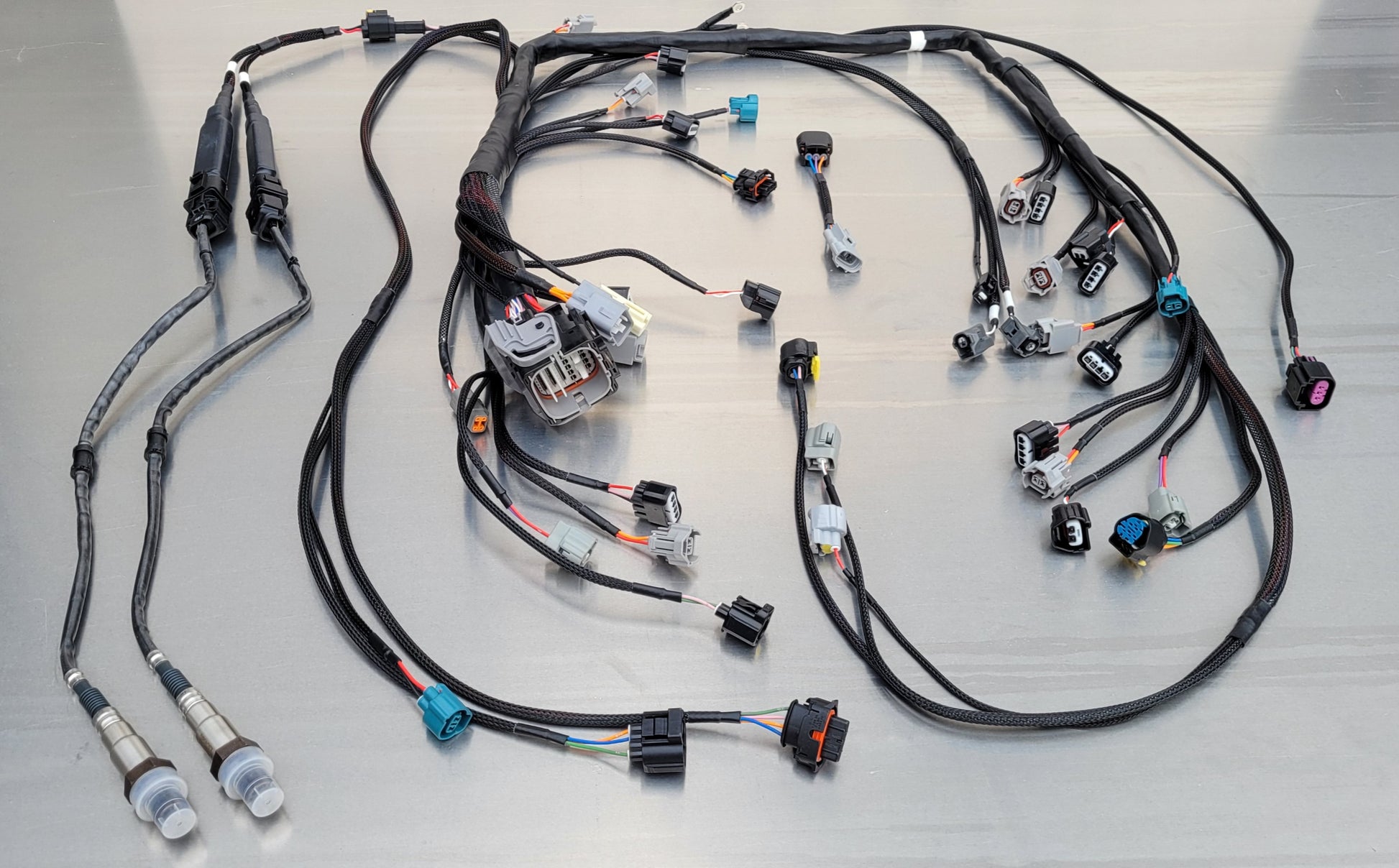

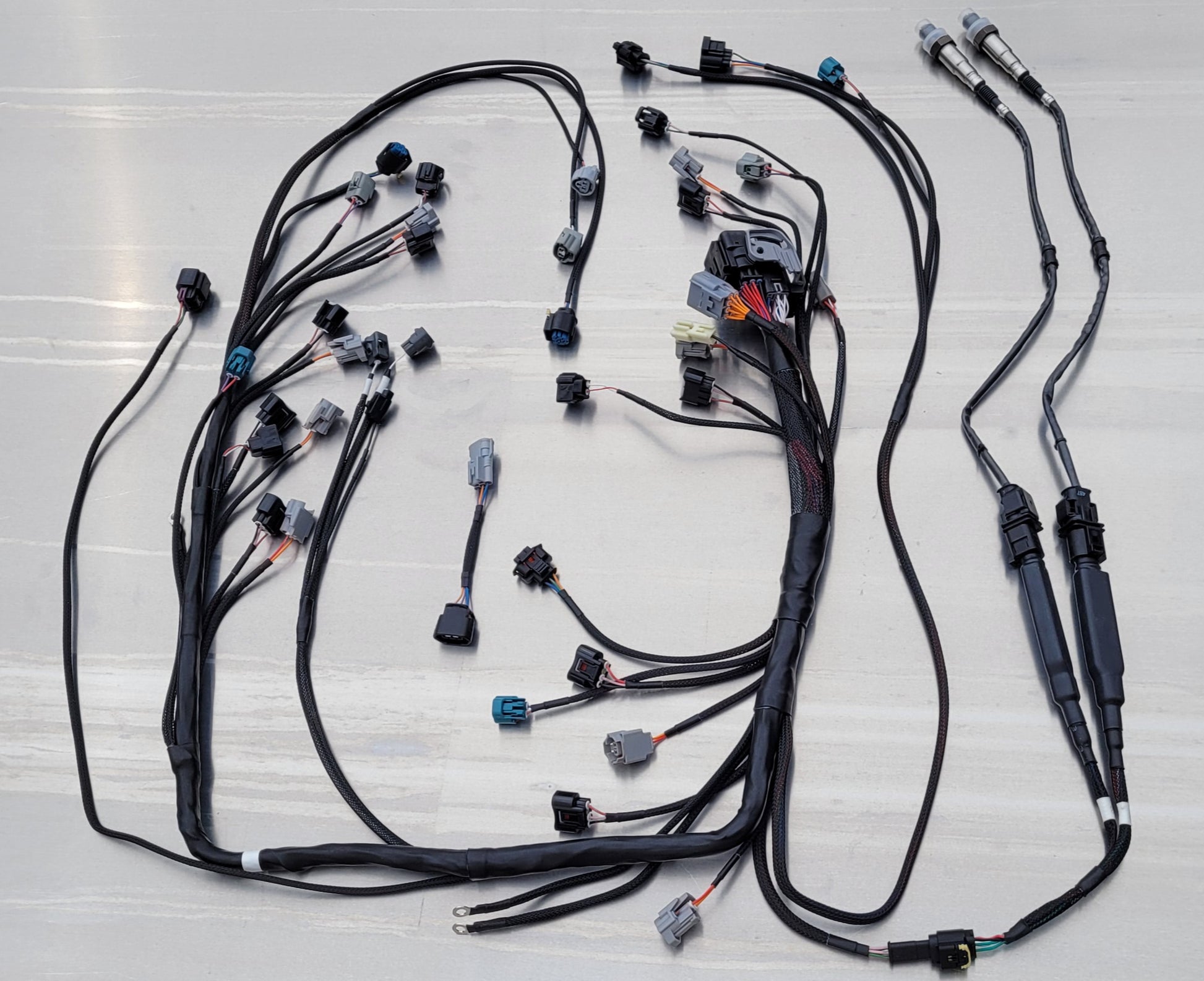

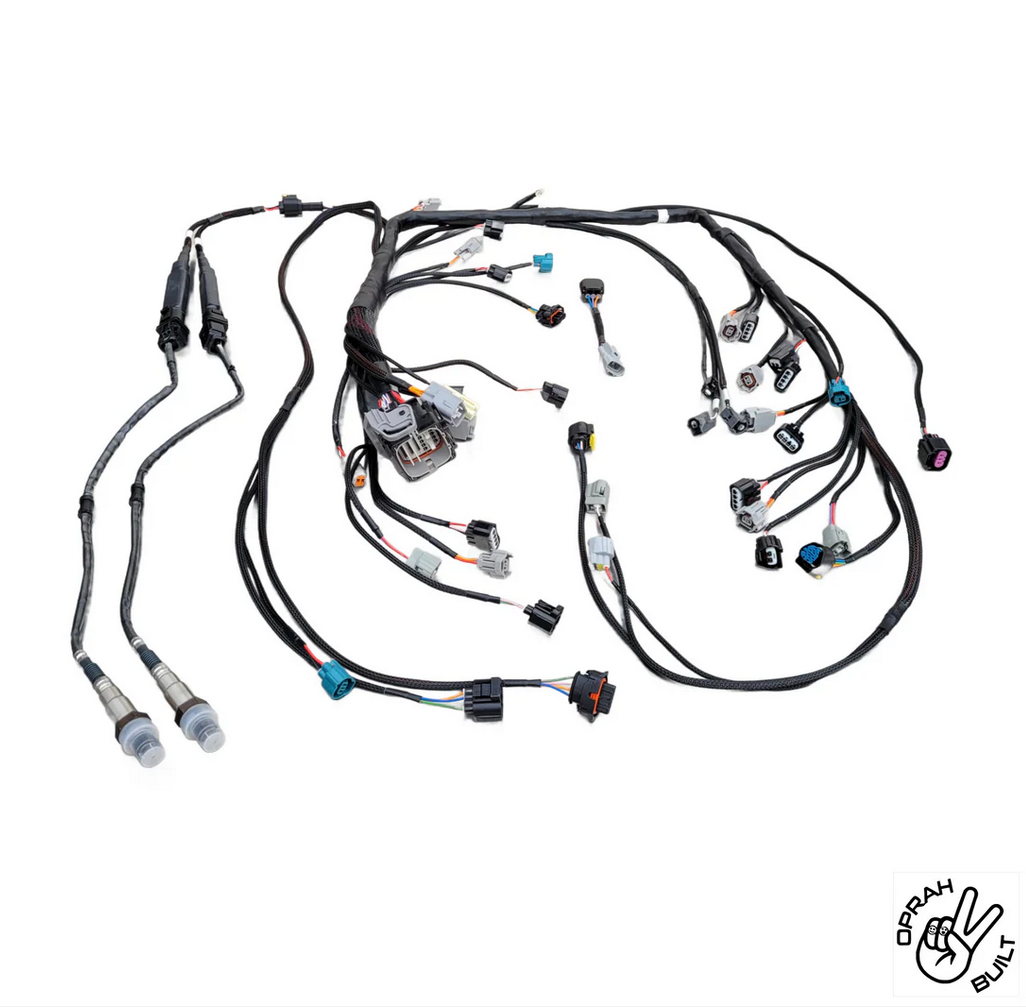

· 1x Engine Harness utilizing the OEM 54-pin & 8-pin Bulkhead Connectors

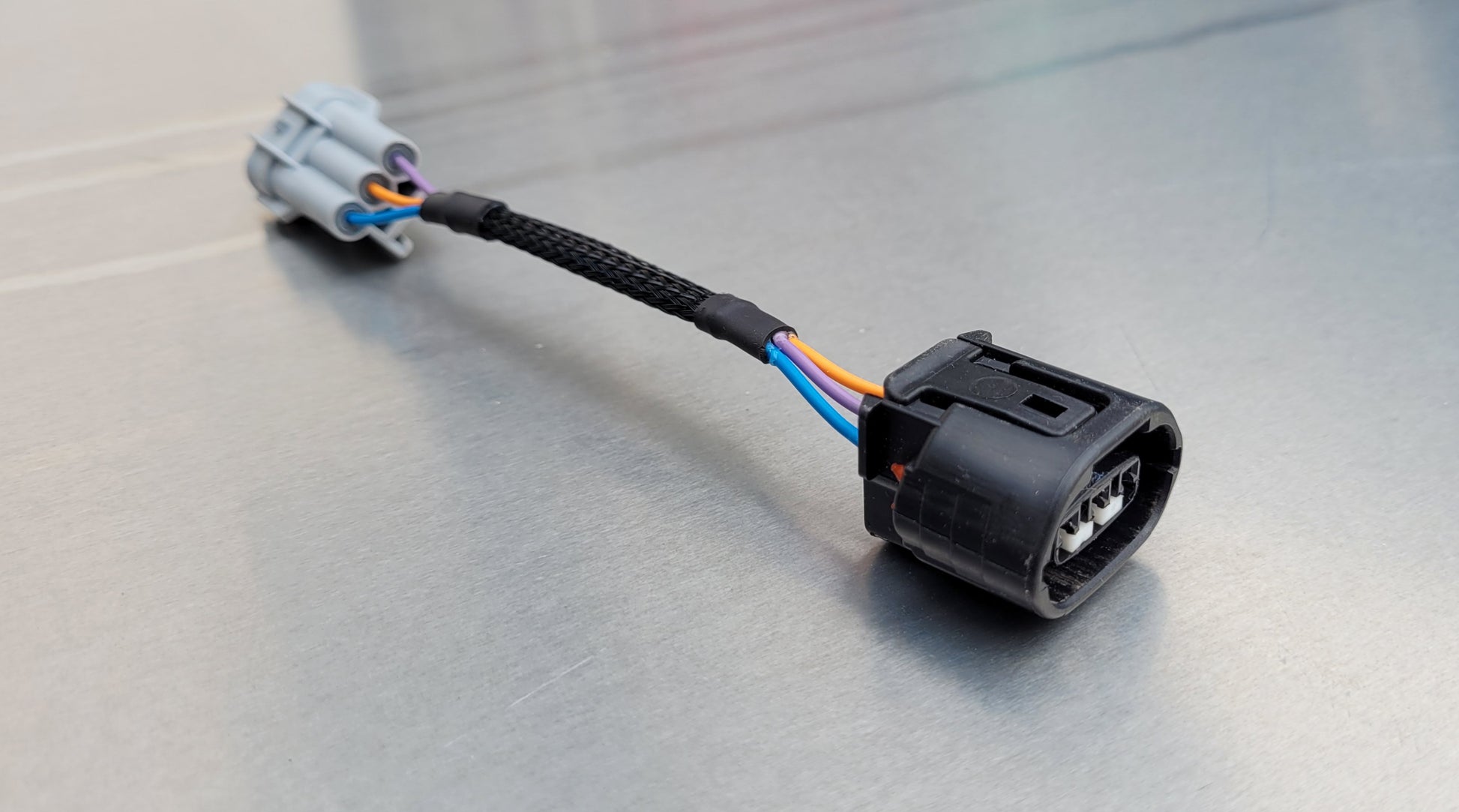

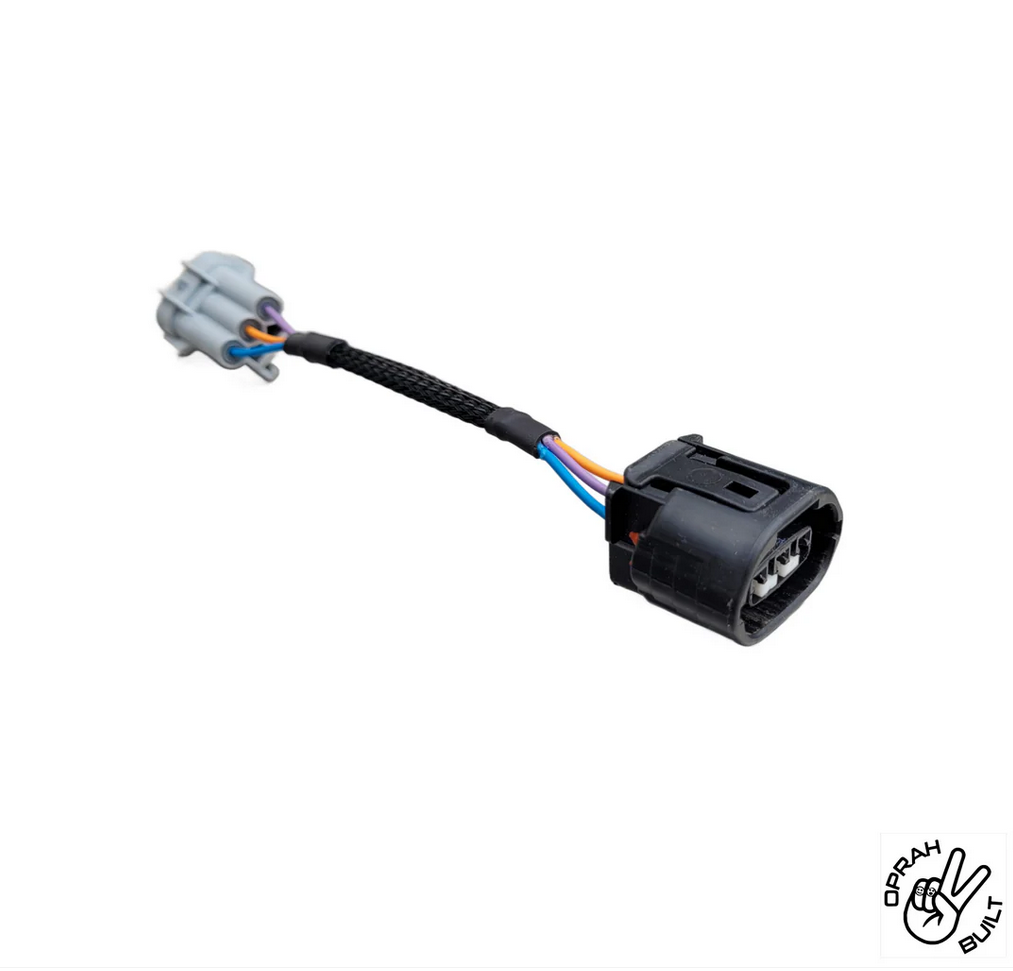

· 1x Alternator Patch Harness

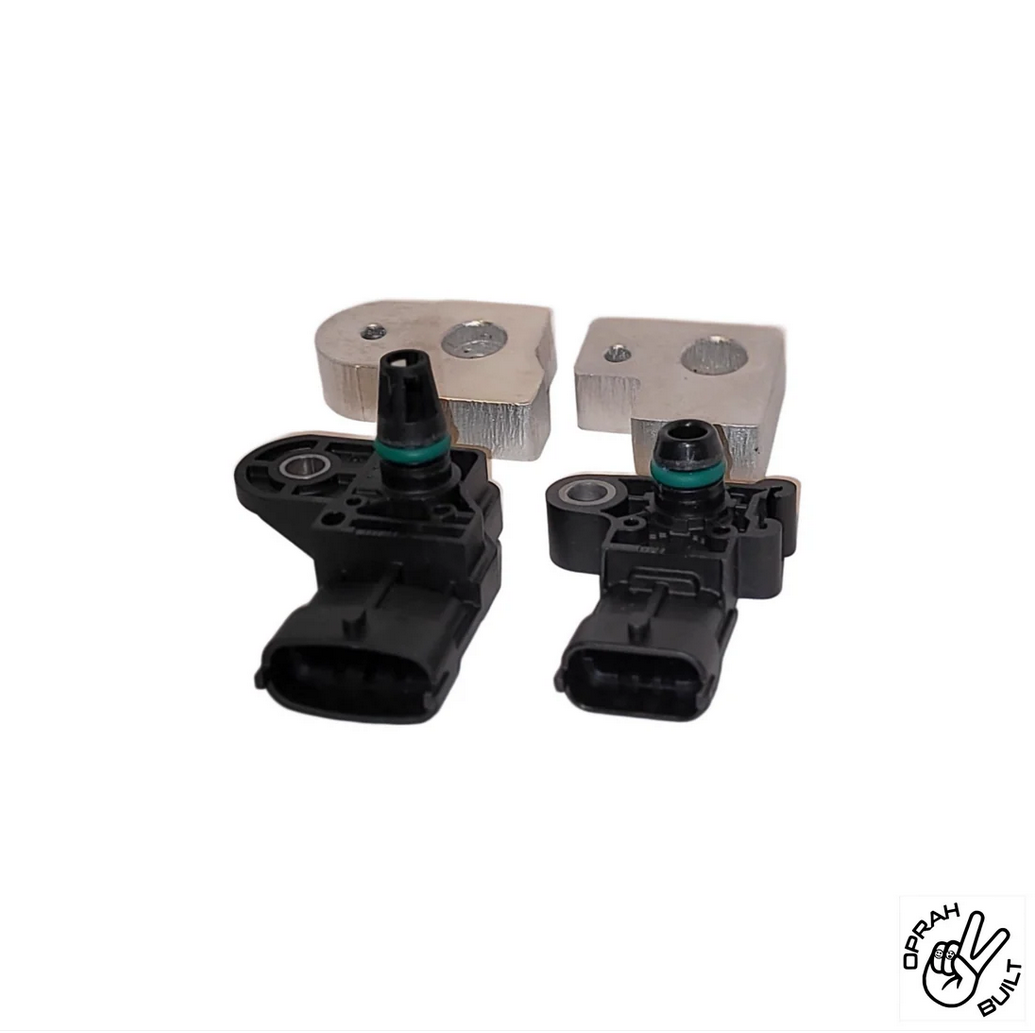

· 1x 3 Bar MAP sensor (0261230262) & Weldable Bung
· 1x 4 Bar Air Pressure/Temp Combo sensor (0281006051) & Weldable Bung
This kit requires the use of 3UZ style coil packs and the 3UZ 2-connector throttle body.
Wideband Options
The kit offers two wideband options:
· Single Wideband O2 Sensor: 1x Wideband controller & LSU 4.9 Sensor using 0-5v Signal
· Dual Wideband O2 Sensor: 2x Wideband controller & LSU 4.9 Sensor using 0-5v Signal
*CAN Wideband/Lambda sensor compatible, inquiry with vendor.
Additional Sensors
The kit is pre-wired to accommodate additional sensors, enhancing engine fuel model, monitoring, and performance:
Sensor/Function wired directly to ECU.
· 1x Fuel Temp/Pressure Combo Sensor (026154401F)
· 1x Oil Temp/Pressure Combo Sensor (026154401F)
· 1x e85 Sensor (13577429)
Sensor/Function wired to DTM 12-pin on ECU Patch Harness for I/O expansion.
· EVAP or WG already wired to the Engine Harness (Emissions or Turbo Control)
· Purge Canister (Emissions)
· Leak Detection (Emissions)
· Vent Valve (Emissions)
· Second CAN network already wired to the Engine Harness
