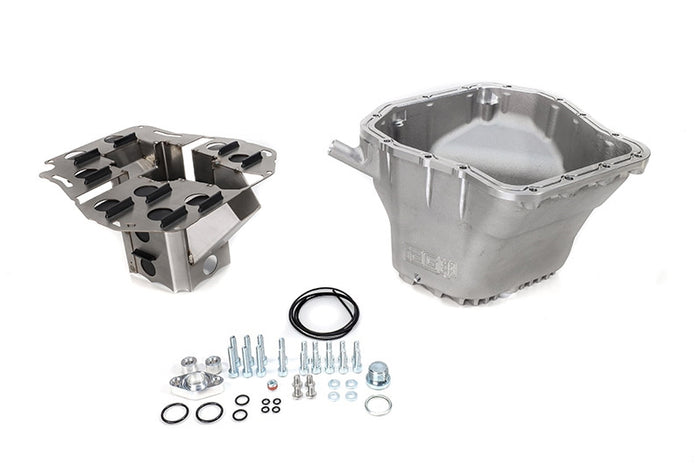

IAG EJ Competition Series Oil Pan w/ Removable Comp Series Lower Baffle - Silver Finish - Subaru Models (inc. 2004-2007 STI / 2002-2014 WRX)

Spectral Performance now carries highly sought-after high-performance upgrades and accessories brought to you by IAG Performance.

This is the IAG Performance Oil Pan w/ Removable Comp Series Lower Baffle. This is a cast-aluminum example that has been CNC-machined to suit a wide range of street and track conditions. The Competition Series Oil Pan has also been designed to fit a larger variety of popular headers for proper clearance while also having an increased oil capacity up to 30% over OEM.

COMPETITION SERIES OIL PAN DETAILS:

• Silver Finish
• Cast aluminum construction
• Designed to fit a large variety of popular headers
• Designed with an increased oil capacity of 30% over OEM
• Incorporates cooling fins to aid in dissipating heat from the oil as air passes over them
• Includes an oil drain plug that is integrated into the lower cooling fins at the absolute bottom of the oil pan to make sure the waste oil is removed
• The drain plug uses an OEM crush washer
• Also designed with a 1/8" NPT port to accept many popular oil temperature sensors
• CNC-machined upper mounting surface for better hardware fitment

COMPETITION SERIES OIL BAFFLE DETAILS:

• Stainless steel construction
• Designed to limit potential blow-by and to prevent oil starvation during high-RPM driving
• Prevents oil from sloshing around under hard acceleration, braking, and cornering
• Ideal for track conditions and can be used for street driving
• Configured with Viton one-way flapper valves which hold oil in areas closer to the pickup
• Combined with louvers in the windage tray that prevents oil from reentering the upper crankcase area and is directed back into the oil pan
• Engineered to be removable for easy cleaning and for future upgrades

INSTALLATION NOTES:

• Compatible with the IAG PN: IAG-ENG-2087 Oil Control Baffle and Windage Tray or their new PN: IAG-ENG-2210 Windage Tray
• This pan is designed to work with the IAG, Killer B, and OEM oil pickups
