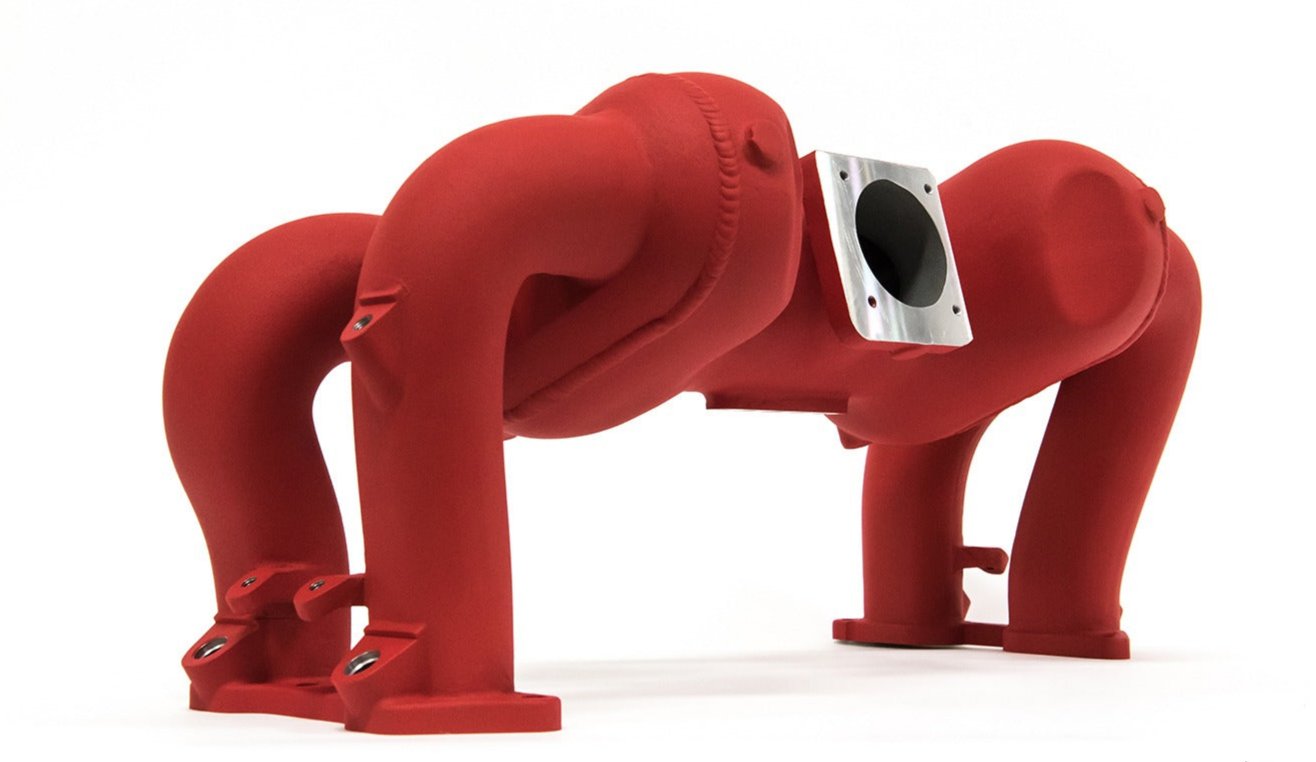

  • AMS Performance Reverse Rotation Intake Manifold - Red Coated - 2002-2014 Subaru WRX / 2004-2021 Subaru STI
1 1

AMS Performance Reverse Rotation Intake Manifold - Red Coated - 2002-2014 Subaru WRX / 2004-2021 Subaru STI

$1,260.95 USD
$1,260.95 USD
Sale Sold out
Shipping calculated at checkout.

About the Product

Optimize Your Performance with the AMS Reverse Rotation Intake Manifold for Subaru WRX / STI Models - Red Coated

The AMS Performance Reverse Rotation Intake Manifold provides exceptional performance for Subaru EJ20 and EJ25 engines. It was designed with superior engineering and cutting-edge techniques, surpassing all competitors in power output. Extensive testing was conducted to ensure that our manifold stands as the top choice on the market.
NOTE: See Application Information Below


Expertly Crafted to Excel

Expertly engineered and thoroughly tested by our expert team, the AMS Performance Reverse Rotation Intake Manifold for the Subaru WRX and STI surpasses all other options on the market. The cast design enhances durability, while precision-crafted interior geometry maximizes efficiency and airflow. Trust in AMS for the highest-quality intake manifold for your Subaru EJ engine.


DETAILS:

  • Reversed, Red Coated Version
  • 4.5 Liter Plenum Volume
  • 13” Equal Length Intake Runners (Measured from Face of Bellhorn to End of Runner)
  • 2.5” (63.5mm) Intake Runner Diameter (ID of Bellhorn)
  • Bellhorn OD 3.8” (96.7mm)
  • Increased Port Size at Cylinder Heads Allow Matching to Larger Hand Ported or CNC Ported Cylinder Heads
  • Available in Standard or Reversed Configuration
  • Throttle Body Opening Accepts Larger Throttle Bodies up to 2.625” (66.675mm) or 70mm with mild porting



Product Notes

  • Due to the large variety of rotated turbo kits on the market, we cannot guarantee fitment with every brand. Depending on the turbo location and sizing, interference with the cylinder 3 intake runner is possible.
  • Some port matching may be required when used in conjunction with CNC or hand ported cylinder heads.
  • The intake manifold is available with a standard or optional reverse throttle body orientation, allowing for more direct intercooler pipe routing.
  • Larger throttle bodies can be used with proper modifications (Up to 70mm with minor porting) (Larger throttle bodies may also require adapter flanges)
  • The intake manifold is flanged for 04+ STI drive by wire throttle bodies, but cable throttle bodies can be used with custom fitting and flange adapter.
  • Standard configuration intercooler piping will need mild custom fabrication due to placement of throttle body.
  • Reversed configuration requires the relocation of the alternator and removal of the A/C compressor. Installation is not a direct bolt on and will require custom intercooler piping.
  • The intake manifold is designed to use a common Subaru aftermarket top feed injector size. (48mm overall length / 11mm inlet – standard Subaru rail size / 14mm outlet) We recommend the use of Injector Dynamics brand injectors.
  • Standard Subaru style injectors cannot be used. (Side Feeds, Stock STI Style Injectors)
  • Not compatible with side feed to top feed conversion rails
  • Requires aftermarket rails and lines, will not fit with stock
  • Not compatible with top mount intercoolers.
  • Not directly compatible with mounting the factory upper coolant reservoir. Custom bracketry will need to be fabricated to mount.
  • The bottom of the center plenum features four 1/8″ and one 1/4″ NPT ports for vacuum accessories.
  • 2008+ STI may require mild clearancing of A/C compressor line



Cutting-Edge Design to Optimize Performance Gains

By using Solidworks© and CFD software, we were able to create a 4.5L plenum that delivers unmatched top-end power. Our unique design also features CNC machined bellhorns that act as internal velocity stacks, resulting in a wide power band and exceptional high RPM horsepower capabilities. This allowed us to optimize the size and angle of the massive 2.5″ tapered runners and cylinder ports, reducing turbulence and maximizing power output. With runner lengths of 13", our AMS Subaru EJ Intake Manifold offers superior flow thanks to its smooth cross section taper.



Maximize Performance and Responsiveness: Reach Exceptional Levels of Improvement

Increase power and gain a competitive edge with the AMS Performance Reverse Rotation Intake Manifold for 2002-2014 Subaru WRX and 2004-2021 Subaru STI. This high-performance upgrade delivers significant power gains across the entire power-band, resulting in faster lap times on the road course and an advantage over rivals on the drag strip. Order now to stay ahead of the game.





Applications

  • 02-05 Subaru WRX w/ EJ20 (Requires adapter to use WRX style drive by cable throttle body)
  • 06-07 Subaru WRX w/ EJ25
  • 08-14 Subaru WRX w/ EJ25 (Requires using STI style drive by wire throttle body)
  • 04-Current Subaru STI w/ EJ25 (2008+ STI may require mild clearancing of A/C compressor line)
  • Will fit various Legacy and Forester EJ25 applications with proper throttle body usage and custom fitting
